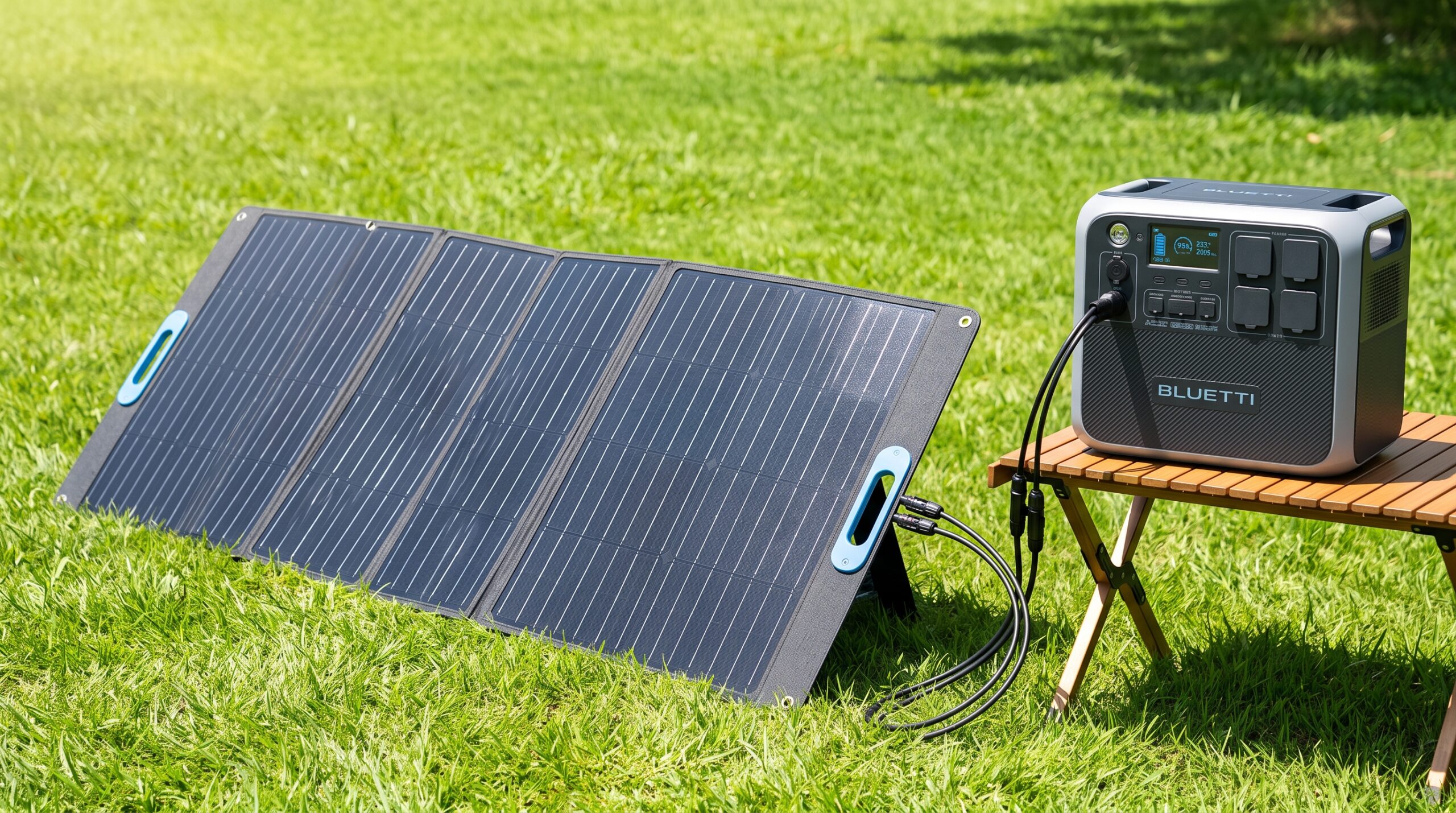

BLUETTI SORA 500 review

BLUETTI SORA 500 Review: Is a 500W Portable Solar Panel Worth It?

by

If you rely on large-capacity solar generators (2,000Wh to 4,000Wh) for whole-home backup, off-grid cabins, or extended RV trips, charging via small 100W or 200W panels can take days. The BLUETTI SORA 500 changes that dynamic by delivering up to 500 watts of solar input from a single foldable unit.

Equipped with next-generation N-Type TOPCon monocrystalline cells offering a 25% conversion efficiency rating, the SORA 500 aims to replace bulky multi-panel arrays with a single high-output setup. This review breaks down real-world charging speeds, technical specs, generator compatibility, and whether a 500W portable panel makes sense for your setup.

At-a-Glance Verdict: BLUETTI SORA 500

BLUETTI SORA 500 Portable Solar Panel

Rating: 4.8 / 5.0

Best For: High-capacity power stations (2,000Wh–4,000Wh+), RV off-grid power, emergency home backup, and eliminating complex multi-panel wiring.

Rated Power 500 Watts
Cell Efficiency Up to 25.0% (N-Type)
Weight 28.4 lbs (12.9 kg)
Weather Resistance IP67 Water-Resistant

Pros & Cons

  • Pros: Massive 500W output from a single unit; highly efficient N-Type TOPCon cells; compact 12-panel fold design; universal standard MC4 connection.
  • Cons: At 28.4 lbs, it is heavy for casual day packing; requires a generator capable of handling 50V Voc.

Key Technical Specifications:

  • Rated Solar Output: 500W
  • Cell Type: N-Type Monocrystalline (TOPCon Technology)
  • Conversion Efficiency: Up to 25.0%
  • Open-Circuit Voltage (Voc): 49.1V
  • Voltage at Max Power (Vmp): 40.92V
  • Current at Max Power (Imp): 12.22A
  • Short-Circuit Current (Isc): 13.31A
  • Connector Type: Universal MC4
  • Waterproof Rating: IP67
  • Dimensions (Unfolded): 100 × 45.1 × 0.1 inches(254.1 × 114.6 × 0.3 cm)
  • Dimensions (Folded): 22.4 × 17.5 × 3.3 inches($57 × 44.5 × 8.5cm)
  • Operating Temperature: -13°F to 149°F (-25°C to 65°C)

Real-World Solar Performance & Charge Times

In real-world field conditions, solar panels deliver between 75% and 85% of their lab-rated output due to ambient temperature and atmospheric factors. A single BLUETTI SORA 500 typically supplies 380W to 430W of continuous DC power under clear midday sun.

Here is how the SORA 500 performs when recharging popular portable power stations:

⚡ BLUETTI SORA 500: Real-World Solar Charging Capabilities

Power Station / Setup Battery Capacity Estimated Solar Charge Time (Full Sun)
BLUETTI AC180 (Single SORA 500 Panel / 500W Max Input) 1,152Wh ~2.5 – 3.0 Hours (0 to 100%)
BLUETTI AC200L / AC200MAX (Single SORA 500 Panel) 2,048Wh ~4.5 – 5.5 Hours (0 to 100%)
BLUETTI AC200L / AC200MAX (2× SORA 500 / 1,000W Array) 2,048Wh ~2.2 – 2.8 Hours (Ultra-Fast Charge)
BLUETTI Apex 300 / Elite 300 (Single SORA 500 Panel) 2,764Wh ~6.0 – 7.0 Hours
BLUETTI Elite 400 / AC300 (Single SORA 500 Panel) 3,840Wh ~8.5 – 10.0 Hours
BLUETTI Elite 400 / AC500 (2× SORA 500 / 1,000W Array) 3,840Wh ~4.5 – 5.2 Hours
12V/24V RV & Marine Off-Grid Bank 200Ah (2,400Wh) ~5.0 – 6.5 Hours (Via MPPT Controller)

What Makes the SORA 500 Stand Out?

1. Next-Gen N-Type TOPCon Solar Cells

Most portable solar panels on the market use standard P-Type PERC cells with conversion rates between 21% and 23.4%. The SORA 500 upgrades to N-Type TOPCon cells, pushing efficiency to 25%. This allows the panel to generate more wattage per square inch, handle high-heat environments with lower power degradation, and harvest better energy during overcast mornings.

2. Compact 12-Panel Folding Footprint

Traditional high-wattage panels are wide and awkward to pack. BLUETTI engineered the SORA 500 with a 12-section accordion fold, shrinking the panel down to 22.4 × 17.5 inches when packed. At 28.4 lbs, it is nearly 30% lighter and 40% more compact than carrying multiple rigid or older 200W arrays combined.

3. Standard MC4 Universal Compatibility

The SORA 500 terminates in standard MC4 solar connectors. This means you are not locked into BLUETTI hardware; you can connect this panel to any compatible third-party generator (such as EcoFlow, Anker, or Jackery) provided the unit’s solar charge controller supports 49.1V Voc and 13.3A.

Sizing & Voltage Compatibility: Check Your Battery First

Before picking up a 500W panel, ensure your power station meets these two requirements:

  1. Maximum Open-Circuit Voltage (Voc ≥ 50V): The SORA 500 operates at 49.1V Voc. Power stations with low-voltage MPPT controllers capped at 28V or 32V (like entry-level 300Wh models) cannot run this panel. It is built for units with 12V–60V or 12V–145V inputs (such as the BLUETTI AC180, AC200L, and AC300).
  2. Current Limits (Imp ≈ 12.2A): Ensure your power station’s MPPT controller can take advantage of 10A to 15A solar current to achieve full 500W throughput.

Final Verdict: Should You Buy the BLUETTI SORA 500?

If you manage a battery system over 1,500Wh and want fast solar recovery without setting up 3 to 5 separate panels with branching cables, the BLUETTI SORA 500 is one of the most efficient high-wattage portable panels available.

  • Buy if: You own an AC180, AC200L, Elite 400, or heavy-duty off-grid RV system and want a streamlined, high-efficiency solar setup.
  • Skip if: You only power small devices from a sub-500Wh battery where a lightweight 100W or 200W panel (like the BLUETTI SP100L or PV200) is more practical.
